WSNUEEE

On this page

Battery · Waterless · Portable

A603

Q: Do I add water to the A603?

Never. The A603 is a waterless diffuser and atomises pure oil on cold air. Adding water will not produce more scent and will damage the atomising head.

A cordless, waterless aroma diffuser with a 2000 mAh cell and a 5 / 10 / 15 mL oil bottle that screws straight into the nozzle. Cold-air atomisation — no water, no heat — with three scent grades and nine ambient light colours you cycle from two buttons on the body.

15 m² · 45 m³ 2000 mAh battery 5 / 10 / 15 mL bottle Grades G1–G3 9 light colours 3 W · 5 V⋮0.6 A

Model A603 · Battery Waterless Aroma Diffuser · Product Manual

Home › Guides › A603 Setup Guide

Updated Oct 16, 2026·9 min read·Reviewed by WSNUEEE Product Support·Model A603

Product Overview

Know Your A603

Everything about the A603 before the first fill — what it holds, what it draws, how long the battery runs, and which bottles fit.

MODEL	A603
MATERIAL	ABS + PPMatte housing with a plated trim ring
POWER	3 W
INPUT	5 V⋮0.6 AType-C charging port
NET WEIGHT	287 g10.12 oz
SIZE	φ76 × 124 mm2.99 × 4.88 in
COVERAGE	15 m² / 45 m³About 1600 ft³ · 160 sq ft
BOTTLE	5 / 10 / 15 mLFits standard oil bottles
BATTERY	2000 mAhAbout 24 h on Grade G1
GRADES	G1–G3Three spray / pause presets
LIGHT	9 coloursAmbient ring, memory of last colour
CONTROL	On-body buttonsON/OFF and ambient light · no app
DIFFUSION	Cold-air atomisationNo heat, no water, no dilution

Line drawing of the WSNUEEE A603 cordless waterless diffuser: a cylindrical matte body with a nozzle at the top, an ambient light ring, two control buttons, and a Type-C port with a charging indicator

Where It Belongs

Living Room

Bedroom

Desk & Office

Bathroom

Anywhere, Cordless

A Diffuser You Carry, Not One You Plug In

The A603 runs on a built-in 2000 mAh lithium battery charged over USB Type-C — about 24 hours of scenting on Grade G1. At 287 g and φ76 × 124 mm it fits in a hand, and there is no cord trailing to a socket, so it can sit on a bedside table, a desk, a shelf or in a hotel room. Fragrance lives in a 5, 10 or 15 mL bottle that screws into the nozzle — no water tank, nothing to dilute.

Quick Start

Six Steps to Start

Take the head off, fill the bottle, screw it back, then run the machine from the two buttons on the body. About two minutes the first time.

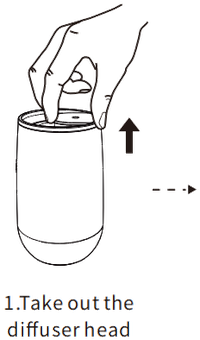

Lifting the diffuser head off the top of the A603 body

Take Out the Head

Lift the diffuser head off the top of the body.

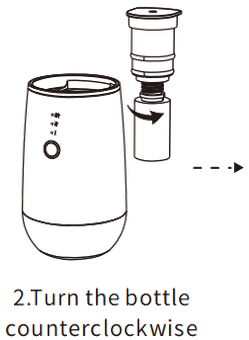

Turning the oil bottle counterclockwise to unscrew it from the A603

Unscrew the Bottle

Turn the bottle counterclockwise to release it.

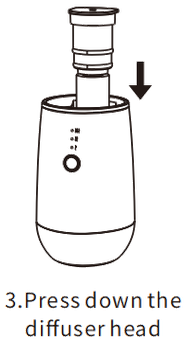

Pressing the diffuser head down onto the filled oil bottle

Press On the Head

Press the diffuser head down onto the filled bottle.

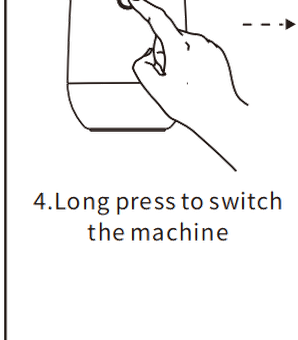

Long-pressing the A603 power button to switch the machine on

Long-Press to Start

Long press the ON/OFF button to switch the machine on.

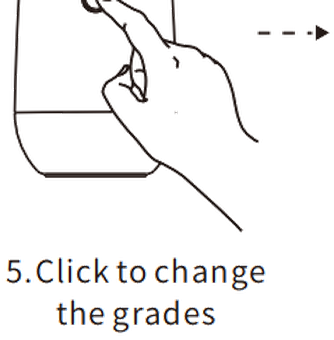

Short-pressing the A603 button to step through scent grades G1 to G3

Click for Grades

Short press to step through grades G1, G2 and G3.

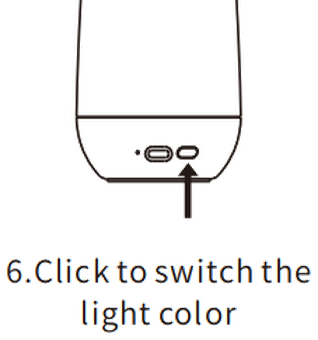

Pressing the ambient light button on the A603 to change the glow colour

Click for Light

Press the ambient light button to change colour.

⚠ Screw the Bottle On Tight

Before you seat the head, check the soft rubber ring and the gasket ring are both in place, then screw the bottle on firmly. Oil that seeps past a loose bottle collects inside the body, and a machine that has been run on its side will leak. Keep the A603 upright whenever a bottle is fitted.

Product Description

Knowing the Machine

A nozzle, a bottle, two buttons and three lights. That is the whole A603 — and the parts you touch day to day are only the first three.

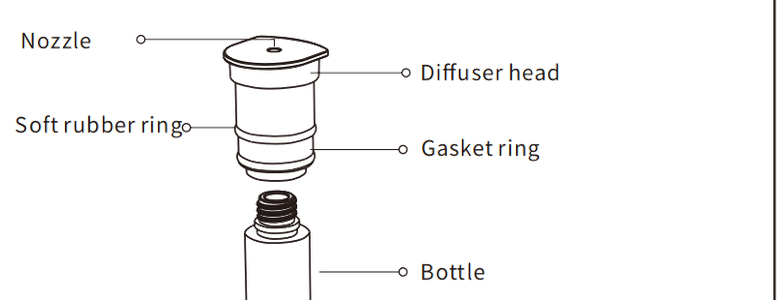

Exploded line drawing of the WSNUEEE A603 showing the nozzle, diffuser head, soft rubber ring, gasket ring, oil bottle, plated decoration ring, ambient light, indicator light and machine body — The A603 taken apart — the bottle, the two rings and the head are the only parts that come off.

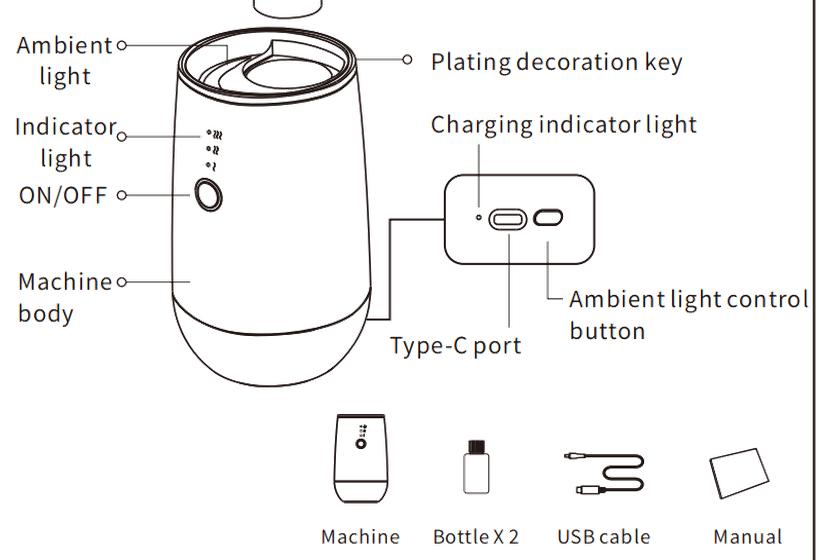

Numbered diagram of the A603 labelling the nozzle, diffuser head, bottle, plating ring, ambient light, indicator light, ON/OFF button, machine body, charging indicator and Type-C port — Where each part sits on the assembled machine.

The Parts You Actually Touch

Of the thirteen labelled parts, only three come off in normal use: the diffuser head, the soft rubber ring and the gasket ring — plus the bottle they all sit on. Everything else — the nozzle, the ambient light, the buttons, the Type-C port and the charging indicator — stays on the body, and nothing inside is user-serviceable.

Two Buttons, and Nothing Else

The A603 has no app and no Bluetooth. Everything — on/off, scent grade, light colour — is done from the two buttons on the body. That means nothing to pair, no phone to keep nearby, and nothing to re-configure if you take it to another room or another building.

Day-to-Day Operation

Buttons, Lights & Charging

Two buttons run the whole machine; a third light on the back reports the battery. Here is what each one does.

The Two Buttons

ON/OFF Button

LONG PRESS: Switch the machine on or off. The machine starts diffusing and the indicator light comes on.
SHORT PRESS: Step through the three scent grades — G1 → G2 → G3 — and back round again.

Ambient Light Button

PRESS: Move to the next of the nine light colours, then to light-off on the following press.
WHEN OFF: The A603 keeps diffusing normally. Only the glow goes dark — the machine does not stop.

The Three Lights

Status Indicator Shows the machine is switched on and diffusing. If it stays dark when the machine is running, the battery is the first thing to check.

Charging Indicator Sits on the back of the body. Steady red while charging, steady green once the battery is full.

Ambient Light A decorative ring with nine colours. It remembers the colour you chose last, and can be switched off without stopping the diffuser.

The Nine Light Colours

Red

Orange

Yellow

Green

Cyan

Blue

Purple

Pink

White

Charging & Runtime

Battery

2000 mAhBuilt-in lithium cell

Charge time

~ 4 hFrom fully drained

Runtime

~ 24 hOn Grade G1

Auto power off

12 hNo operation

Charge It Before the First Run

The A603 charges over USB Type-C at 5 V⋮0.6 A. A full charge from empty takes about 4 hours. If you press the button on a completely flat machine it may not respond — charge for at least 5 minutes before trying to switch it on. Use a standard 5 V USB charger or a computer port; do not use a fast-charge brick that pushes a higher voltage.

It Switches Itself Off After 12 Hours

Left untouched, the A603 stops by itself after 12 hours of no operation. That is a battery-saving behaviour, not a fault. To keep scenting, simply long press ON/OFF to start it again, or set it running again when you come back to the room. For a bedroom overnight, one switch-on covers the whole night.

Performance

Scent Grades G1–G3

Three presets, chosen with a short press of the ON/OFF button. Each grade is a pairing of a spray time and a pause time — that is what changes the strength and the oil use.

What a Grade Actually Changes

A grade is a pairing of working time (how long the atomiser sprays) and stop time (how long it waits before spraying again). The A603 fires for the working time, waits out the stop time, and repeats. There is no “stronger mist” to choose — only more or less frequent spraying of the same cold-air atomisation. G3 sprays most often and uses the most oil; G1 sprays least often and makes a bottle last longest.

Grade	Working time	Stop time	Oil use	Best for
G3	10 s	60 s	0.13 g/h	The strongest setting. Short pauses keep the scent present in a room that is being used or has an open door.
G2	10 s	120 s	0.07 g/h	The everyday middle. A steady background scent in a living room, bedroom or office for most of a day.
G1	5 s	150 s	0.03 g/h	The lightest setting — and the one that gives about 24 hours of runtime. A hint you notice on entering, then stop noticing.

Oil Use Is the Real Limit

At G3 the machine sprays roughly twice as often as at G1, so a 5 mL bottle empties considerably sooner. If a room is being scented for longer than a bottle lasts, the honest fix is a lower grade over a longer period, not a stronger grade in short bursts. A steady, faint scent reads as “this room smells good”; a heavy blast reads as “someone is covering something up”.

How It Works

Waterless, Explained

The A603 puts pure oil into the air, with no water and no heat. That is why it looks different from a humidifier — and why a small bottle goes a long way.

WSNUEEE A603

Waterless. A 5, 10 or 15 mL oil bottle screwed into the nozzle — no tank to fill, empty or bleach.
No dilution. Full-strength oil reaches the air, so a few millilitres lasts for days.
Cold atomisation. Nothing is heated, so delicate top notes survive.
Cordless. A 2000 mAh battery and a 287 g body — no cable, no socket, move it as you like.
Coverage. Up to 15 m² / 45 m³ — about 1600 ft³.
Residue free. No mineral dust, no damp surfaces, no white film on furniture.

A water-tank diffuser

Holds water and a few drops of oil; the tank needs cleaning or it smells of the last scent.
Dilutes the oil to a fraction of its strength — the mist is mostly water.
Often heats or ultrasonic-agitates, which drives off the light, expensive top notes first.
Bulkier, and tethered to a socket because of the tank and the heater.
Coverage is limited by how far a water mist carries before it settles.
Can leave a fine mineral film on furniture and window glass over time.

Why the Mist Is Hard to See

A cold-air atomiser does not make a steam plume. The nozzle releases a very fine, dry vapour — often invisible against a bright background — which is exactly what you want: a water-tank humidifier’s visible plume is mostly water settling onto whatever is nearby. The A603’s job is to put scent into the air of a 15 m² room, and it does that without making the room look foggy. Take it into a darkened room, hold a torch beam across the nozzle, and you will see the pulse.

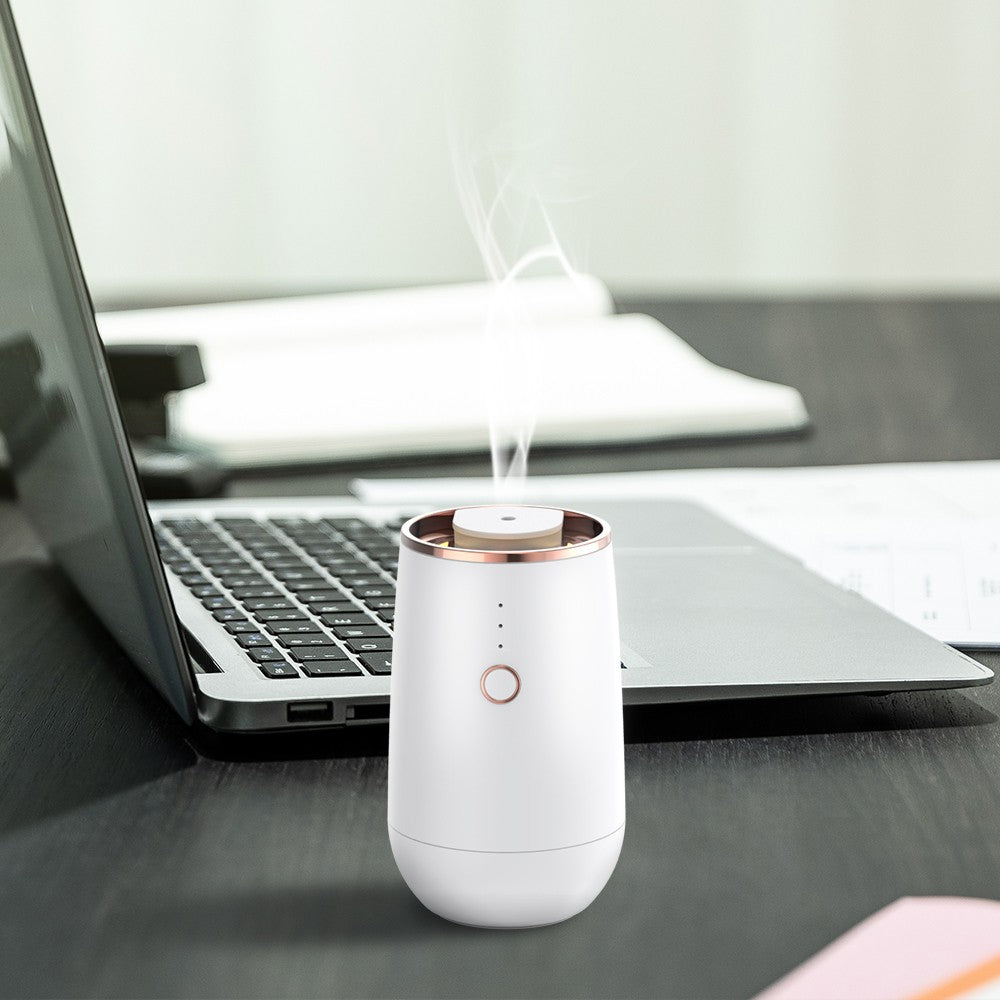

WSNUEEE A603 cordless diffuser standing on a desk at the office, scent drifting up from the nozzle — The A603 on a desk — no cord, no tank, and nothing to plug in before you use it.

Unboxing

What’s in the Box

Four pieces. Two spare bottles are the ones worth knowing about — they let you swap scents without washing anything out.

The A603 diffuser body with the head fitted

MachineThe A603 body with the diffuser head and both rings fitted.

A spare 5, 10 or 15 millilitre oil bottle for the A603

Bottle × 2Two oil bottles — keep one per scent. Empty; fill them yourself.

The USB Type-C charging cable supplied with the A603

USB CableType-C charging cable. Use a standard 5 V USB charger — the adapter is not included.

ManualThe printed product manual — this page is its online companion.

Bring Your Own USB Charger

The box carries the USB cable but not the wall adapter — the A603 charges from any standard 5 V USB source, which you almost certainly already have. That keeps the package smaller and avoids shipping you a second charger. What is not optional is the voltage: charge from 5 V⋮0.6 A and do not use a fast-charge brick that pushes the voltage higher.

Maintenance

Cleaning

Three parts, a few minutes, roughly once a month — more often if you change scents.

1. Empty the Bottle Unscrew the bottle and pour out any remaining oil. Do not tip the head into water.

2. Wipe the Head and Rings Wipe the diffuser head, the nozzle and both rings with a soft cloth. Clean the bay so no oil pools around the electronics.

3. Dry, Then Reassemble Let everything air-dry fully before refilling. Refit both rings, seat the head, and screw the bottle firmly shut.

What to Clean It With

Use a soft, dry or very slightly damp cloth, and medical-grade alcohol (90% or higher) on the atomising pin if a scent is lingering or the spray has weakened. Do not rinse the machine under a tap, do not use abrasive cleaners or solvents, and never immerse the body — it contains the battery. Alcohol on a cloth, not poured into the unit.

⚠ Never Charge a Wet Machine

The Type-C port sits on the body, so keep it dry. If any oil has reached the port, wipe it clean and let it dry completely before plugging in the cable. Do not charge the A603 with a bottle fitted on its side.

Before You Run It

Safety

Four precautions from the printed manual, worth reading once so the machine lasts and the room stays pleasant.

Icon showing the A603 standing upright, which is the correct way to use it

Use It Upright

Always stand the A603 upright during use. Tipping it or laying it on its side lets oil run out of the bottle and into the body, which is not covered by the warranty.

Icon showing that fast charging the A603 with a high-voltage adapter is not allowed

No Fast Charging

Charge only at 5 V⋮0.6 A. Do not use a fast-charge brick or any adapter that pushes a higher voltage — it can damage the battery and the charging circuit.

Icon showing that tilting the A603 causes the oil to leak

Do Not Tip It

Do not tilt, swing or turn the machine upside down while a bottle is fitted. Oil that reaches the electronics or the battery is a fault of use, not of manufacture.

Icon showing that the A603 must not be laid face down or inverted

Do Not Lay It Face Down

Store and carry the machine upright, with the bottle screwed tight. Never leave it face down, in a bag with a bottle fitted, or lying flat on a shelf.

⚠ Heat, Damp and Repairs

Keep the A603 away from damp or hot places and do not leave it in direct sun, in a closed car, or anywhere above 60 °C / 140 °F — the battery is the part that suffers. Essential oils are flammable, so keep the machine away from open flames. And do not take the machine apart: there are no user-serviceable parts inside, and opening the body voids the warranty.

Out of Reach of Children and Pets

Concentrated oil is not for skin, eyes or mouths. Keep the machine and any spare bottles out of reach of children and pets, and if oil is swallowed, seek medical advice and keep the bottle to hand. If anyone in the household is asthmatic, pregnant or sensitive to fragrance, start at Grade G1 and stop if it is uncomfortable.

If Something Is Wrong

Troubleshooting

The five faults the printed manual lists, plus what to do about each — all of them come down to the oil, the seals or the charge.

Breakdown	Solution
Do not diffuse	Switch the machine on with a long press and confirm the indicator light is on. If the battery is flat, charge the A603 for at least 5 minutes before pressing again. Check the bottle actually holds oil, and that the nozzle is not covered or blocked.
Weak diffuse	Usually a clogged atomising pin or oil that is too thick. Clean the pin with 90%+ alcohol on a cloth, let it dry, and refill. Try the next grade up, and if the scent is still faint the oil itself is the limiting factor.
Oil leakage	Check both the soft rubber ring and the gasket ring are fitted and not twisted, then screw the bottle on firmly. Keep the machine upright — a tilted A603 will leak past the seals whatever else you do.
Oil spill	Wipe the body, the bay and the Type-C port with a soft cloth and let everything dry completely before charging. Do not switch the machine on until the oil has been cleaned away.
Abnormal noise	Stop the machine and empty the bottle. A dry bottle, a partly unscrewed head or hard residue on the atomising pin are the usual causes. Clean and dry the parts, refill, and reassemble — then try again.

The Machine Switched Itself Off

That is the 12-hour auto power-off, not a fault. With no operation for 12 hours the A603 stops to protect the battery. Long press ON/OFF to start it again. If it stops well before 12 hours, the battery needs charging.

After the Sale

Warranty & Support

Twelve months on the machine, and a real person on the other end of the email.

Coverage

12 months

On the A603 unit itself, from the date of purchase. Consumables, the battery after normal cycle wear, and accidental damage are excluded.

Response

24 hours

Support replies within one working day. Include your order number, the model A603, and a photo or clip of the issue.

Spare parts

Available

Diffuser heads, rings and replacement bottles can be supplied separately — you do not replace the whole machine when one part wears.

Keep the Manual and a Spare Bottle

The printed manual carries the model details support will ask for. And because the box includes two bottles, keeping one per scent means you can change fragrance without cleaning anything — just swap the bottle over.

Common Questions

Frequently Asked

Does the A603 come with oil?

It ships with two empty bottles — a 5, 10 or 15 mL size — and no oil. Fill them with any true essential oil or fine fragrance oil, from us or from anywhere else. You are never locked into a particular refill.

How long does the battery last?

About 24 hours of diffusing on Grade G1, from a 2000 mAh cell. Higher grades spray more often and shorten that figure. A full charge from empty takes roughly 4 hours over USB Type-C.

How much room will one A603 scent?

Up to 15 m² in area and 45 m³ by volume — about 1600 cubic feet. That is a bedroom, a study, an office desk or a bathroom from a single unit.

Do I need to add water?

Never. The A603 is a waterless diffuser — it atomises pure oil on cold air. Adding water will not produce more scent and will damage the atomising head.

Which bottles fit?

The A603 is built for 5, 10 and 15 mL oil bottles — the standard sizes most essential oils ship in. Screw the diffuser head straight onto your own bottle; there is no proprietary cartridge.

Is there an app?

No. The A603 has no app and no Bluetooth. On/off and the three scent grades are set with the ON/OFF button, and the nine light colours with the ambient light button. Nothing to pair and no phone needed.

How do I change the scent grade?

Short press the ON/OFF button to step through the grades. The three presets are G1 (5 s spray / 150 s pause), G2 (10 s / 120 s) and G3 (10 s / 60 s). A long press switches the machine on or off.

Why did it switch itself off?

After 12 hours with no operation the A603 powers down by itself to protect the battery. That is normal, not a fault. Long press ON/OFF to start it again.

How many light colours are there?

Nine — red, orange, yellow, green, cyan, blue, purple, pink and white. Press the ambient light button to move through them, then to light-off. The machine keeps diffusing with the light switched off.

Why can’t I see a mist?

Cold-air atomisation produces a very fine, dry vapour rather than a steam plume. It is often invisible in daylight, and that is the point — a visible plume is mostly water settling on nearby furniture. Take it into a dark room and hold a torch beam across the nozzle to watch the pulse.

How often should I clean it?

Roughly once a month, or whenever you change scents. Empty the bottle, wipe the diffuser head, the nozzle and both rings with a soft cloth, and use 90%+ alcohol on the pin if a scent lingers. Let everything dry fully before refilling.

Can I use two units in one room?

Yes, and it is often better than running one at G3. Two A603 units at Grade G1 or G2, placed apart, give a more even scent than one machine working hard — and they use less oil between them.

Still Stuck?

We Will Walk You Through It

If a step here does not match what you see, email us with your order number, the model A603, and a photo of the machine. We will reply within one working day.

wsnueee@outlook.com

Mon–Fri · replies within one working day · WSNUEEE Product Support
